ARINC Horizontal Scale Avionics Clamps 1 Deep

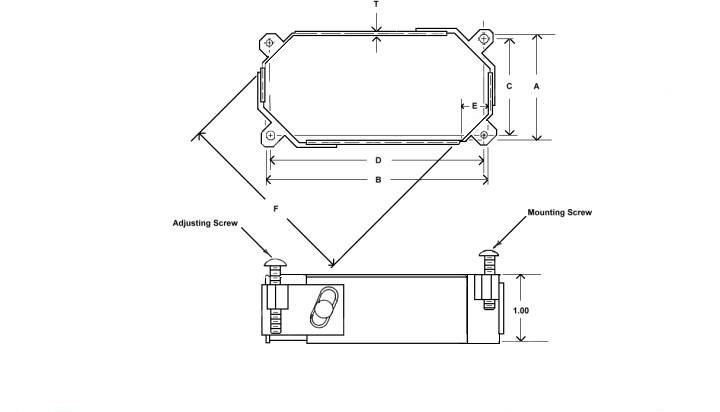

  ARINC 408A Horizontal Scale Instrument Clamp, 1 inch deep

AMI

P/N

Equivalent / Alternate Part numbers          *Note 6

ARINC# 408

SPEC

A

B

C

D

E

F

T

MOUNTING

SCREW

ADJUSTING

SCREW

FINISH



.015

.015

.005

.005

.010

REF.

.003

3911000   web store details

64321B,        18671,   MGB68247, NH1000433,     5340-01-107-6541

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

.045

MS24693BB30

MS35214-31

Note 1

MSP 64321B equivalent. $30.61 each. We designed the 64321B clamp in the mid 60's. We sold that design in 2002. For a less expensive but stronger alternative, try our new design P/N 3911000. This is an ARINC 1.5X3ATI clamp, 1 inch deep, with an anodized finish.

3911001

NSA934901-06

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

.045

MS24693BB32

MS35214-115

Note 2

3911010   web store details

64419B,          5340-01-438-0430, MGB68568,         5340-01-332-5439, 7001995-1

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

.045

MS35214-29

MS35214-46

Note 1

MSP 64419B equivalent. $30.61 each. We designed the 64419B clamp in the mid 60's. We sold that design in 2002. For a less expensive but stronger alternative, try our new design P/N 3911010. This is an ARINC 1.5X3ATI clamp, 1 inch deep, with an anodized finish.

3911050

64470

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

.045

MS35214-29

MS35214-46

Notes 1 & 4

3912000   web store details

64676B

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

.045

MS24693BB30

MS35214-31

Note 3

MSP 64676B equivalent. $30.61 each. We designed the 64676B clamp in the mid 90's. We sold that design in 2002. For a less expensive but stronger alternative, try our new design P/N 3912000. This is an ARINC 1.5X3ATI clamp, 1 inch deep, with an chem-film finish.

3912005   web store details

64641B

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

.045

MS35214-29

MS35214-46

Note 3

MSP 64641B equivalent. $30.61 each. We designed the 64641B clamp in the mid 90's. We sold that design in 2002. For a less expensive but stronger alternative, try our new design P/N 3912005. This is an ARINC 1.5X3ATI clamp, 1 inch deep, with an chem-film finish.

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear.

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 in. lb.

All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5

6. The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross for all specifications, but should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended cross referenced parts to ensure suitability for their intended application.

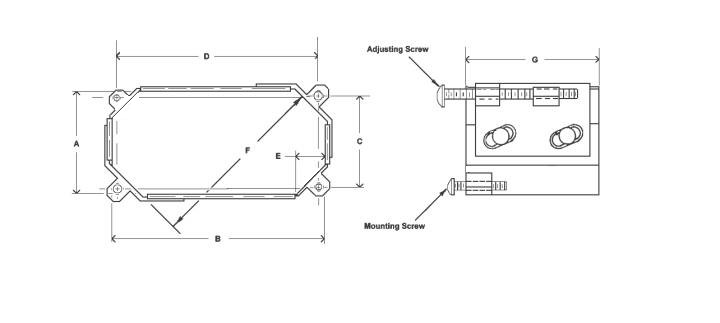

ARINC Horizontal Scale Clamps 2 Deep





AMI

P/N

Equivalent / Alternate Part numbers          *Note 6

ARINC# 408

A

B

C

D

E

F

G

T

MOUNTING

SCREW

ADJUSTING

SCREW

Notes



SPEC

.015

.015

.005

.005

.010

REF.

.03

.003

3921000 web store details

MSP 64481B,       5340-01-504-6662, NSA934901-17, 544104

1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

2.000

.045

MS35214-29

MS35214-50

Note 1

3922000  web store details



1.5X3ATI-R

1.457

3.175

1.340

3.060

.428

2.670

2.000

0.045

MS35214-29

MS35214-50

Note 3

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear.

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 in. lb.

All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5

6. The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross for all specifications, but should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended cross referenced parts to ensure suitability for their intended application.
