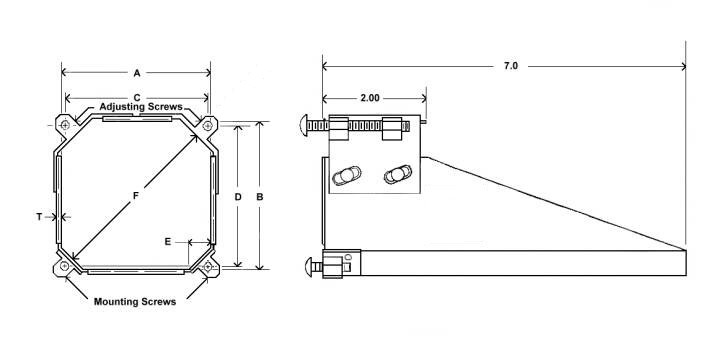

ARINC 408A Avionics Mounting Trays, 7" deep.

                           (ARINC Shelf Clamps)



3ATI SHELF CLAMPS                    4ATI SHELF CLAMPS

5ATI SHELF CLAMPS                    Mixed ATI Size SHELF CLAMPS







3ATI Shelf Clamps

AMI

P/N

Alternate Part numbers  *Note5

ARINC# 408

SPEC

A

B

C

D

E

F

MOUNTING

SCREWS

ADJUSTING

SCREW

Notes



�.010

�.010

�.005

�.005

�.010

REF.

3ATI























3671000-1 web store details

MSP 64409B-101

3ATI-S

3.175

3.175

3.060

3.060

.428

3.885

MS24693BB30 & 52

MS35214-35 & -50

Note 1

MSP 64409B-101 equivalent $78.45 ea. We designed the 64409B-101 clamp in the early 70's. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 and 6-32 flat head screws in  mounting positions, and  6-32 and 8-32 pan head screws in the adjusting positions.

3671000-3 web store details

MSP 64409B-103,       5340-01-329-1034,   N1004685-10, 7000066-3

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-29 & -44

MS35214-35 & -50

Note 1

MSP 64409B-103 equivalent $78.45 ea. We designed the MSP 64409B-103 clamp in the early 70's. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 and 6-32 pan head screws in both the mounting and adjusting positions.

3671000-5 web store details

MSP 64409B-105

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-44

MS35214-50

Note 1

MSP 64409B-105 equivalent 78.45 ea. We designed the MSP 64409B-105 clamp in the early 70's. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 pan head screws in both the mounting and adjusting positions.

3671000-7

MSP 64409B-107

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS24693BB62

MS24693BB52

Note 1

MSP 64409B-107 equivalent $78.45 ea. We designed the MSP 64409B-107 clamp in the mid 80's for Honeywell. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 and 6-32 pan head screws in both the mounting and adjusting positions that are long enough for a .500 thick panel.

3671000-9

MSP 64409B-109

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-44 & MS24693BB62

MS35214-50 & MS24693BB52

Note 1

3671005-3



3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-29

MS35214-35

Note 1

3672000-1 web store details

MSP 64621B-101

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS24693BB52

MS35214-50

Note 3

MSP 64621B-101 equivalent $78.45 ea. We designed the MSP 64621B-101 clamp in the early 80's. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an chem-film finish. This clamp has 8-32 and 6-32 flat head screws in  mounting positions, and  6-32 and 8-32 pan head screws in the adjusting positions.

3672000-3 web store details

MSP 64621B-103

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-44

MS35214-50

Note 3

MSP 64621B-103 equivalent $78.45 ea. We designed the MSP 64621B-103 clamp in the early 80's. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an chem-film finish. This clamp has 8-32 and 6-32 pan head screws in both the mounting and adjusting positions.

3672000-5 web store details

MSP 64621B-105,        5340-01-467-1942

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-44

MS35214-50

Note 3

MSP 64621B-105 equivalent $78.45 ea. We designed the 64621B-105 clamp in the early 80's. We sold that design in 2002. This clamp is a 3ATI shelf style clamp that is 7 inches deep with an chem-film finish. This clamp has 8-32 pan head screws in both the mounting and adjusting positions.

3673000-5 web store details

NSN: 5340-01-627-4605

3ATI-S

3.175

3.175

3.060

3.060

0.428

3.885

MS35214-44

MS35214-50

Note 4

This clamp is a 3ATI shelf style clamp that is 7 inches deep with an class 3 chem-film finish. This clamp has 8-32 pan head screws in both the mounting and adjusting positions.



Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.
2: Anodized per MIL-A-8625, Type 1, Class 1, Clear.
3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.
4. Chem Film per MIL-DTL-5541, Class 3, Clear
Recommended mounting and adjusting screw torque is 8-12 in. lb.
All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.
Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.
Rivet materials are 2017 per QQ-A-225/5
5. The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross for all specifications, but
should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended cross referenced parts to ensure
suitability for their intended application.





 4ATI Shelf Clamps



AMI

P/N

Alternate Part numbers *Note 5

ARINC# 408

SPEC

A

B

C

D

E

F

MOUNTING

SCREWS

ADJUSTING

SCREW

Notes



�.010

�.010

�.005

�.005

�.010

REF.

3771000-1 web store details

MSP 64391B-101

4ATI-S

3.975

3.975

3.860

3.860

0.428

5.015

MS24693BB30 & 52

MS35214-29 & -50

Note 1

We designed the MSP 64391B-101 clamp in the early 70's. We sold that design in 2002. This clamp is a 4ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 and 6-32 flat head screws in  mounting positions, and  6-32 and 8-32 pan head screws in the adjusting positions.

3771000-3 web store details

MSP 64391B-103,       5340-01-329-5677, NH1004527-10, 7000066-1 NSN 5340-01-626-8774

4ATI-S

3.975

3.975

3.860

3.860

0.428

5.015

MS35214-29 & -44

MS35214-35 & -50

Note 1

We designed the MSP 64391B-103 clamp in the early 70's. We sold that design in 2002. This clamp is a 4ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 and 6-32 pan head screws in both the mounting and adjusting positions.

3771000-5 web store details

MSP 64391B-105

4ATI-S

3.975

3.975

3.860

3.860

0.428

5.015

MS35214-44

MS35214-50

Note 1

We designed the 64391B-105 clamp in the early 70's. We sold that design in 2002. This clamp is a 4ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 pan head screws in both the mounting and adjusting positions.

3771000-7

MSP 64391B-107

4ATI-S

3.975

3.975

3.860

3.860

0.428

5.015

MS24693BB52

MS24693BB62

Note 1

We first designed the MSP 64391B-107 clamp in the mid 80's. We sold that design in 2002. This clamp is a 4ATI shelf style clamp that is 7 inches deep with an anodized finish.

3772000-3



4ATI-S

3.975

3.975

3.860

3.860

0.428

5.015

MS35214-29 & -44

MS35214-35 & -50

Note 3



Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.
2: Anodized per MIL-A-8625, Type 1, Class 1, Clear.
3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.
4. Chem Film per MIL-DTL-5541, Class 3, Clear
Recommended mounting and adjusting screw torque is 8-12 in. lb.
All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.
Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.
Rivet materials are 2017 per QQ-A-225/5
5. The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross for all specifications, but
should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended cross referenced parts to ensure
suitability for their intended application.





5ATI Shelf Clamps



AMI

P/N

Alternate Part numbers *Note 5

ARINC# 408

SPEC

A

B

C

D

E

F

MOUNTING

SCREWS

ADJUSTING

SCREW

Notes



�.010

�.010

�.005

�.005

�.010

REF.

3871000-1 web store details

MSP 64405B-101

5ATI-S

4.975

4.975

4.810

4.810

.476

6.360

MS24693BB52

MS35214-50

Note 1

We designed the MSP 64405B-101 clamp in the early 70's. We sold that design in 2002. This clamp is a 5ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 flat head screws in  mounting positions, and 8-32 pan head screws in the adjusting positions.

3871000-3 web store details

MSP 64405B-103,      5340-01-328-1219, NH1004684-10, 7000066-2

5ATI-S

4.975

4.975

4.810

4.810

.476

6.360

MS35214-44

MS35214-50

Note 1

We designed the MSP 64405B-103 clamp in the early 70's. We sold that design in 2002. This clamp is a 5ATI shelf style clamp that is 7 inches deep with an anodized finish. This clamp has 8-32 pan head screws in  mounting positions, and 8-32 pan head screws in the adjusting positions.

3872000-1



5ATI-S

4.975

4.975

4.810

4.810

.476

6.360

MS24693BB52

MS35214-50

Note 2

3872000-3



5ATI-S

4.975

4.975

4.810

4.810

.476

6.360

MS35214-44

MS35214-50

Note 2

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.
2: Anodized per MIL-A-8625, Type 1, Class 1, Clear.
3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.
4. Chem Film per MIL-DTL-5541, Class 3, Clear
Recommended mounting and adjusting screw torque is 8-12 in. lb.
All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.
Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.
Rivet materials are 2017 per QQ-A-225/5
5. The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross
for all specifications, but should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended
cross referenced parts to ensure suitability for their intended application.





Mixed ATI Size Shelf Clamps

ARINC 408A Shelf Type Instrument Mount, 7 inch deep

AMI

P/N

Alternate Part numbers *Note 5

ARINC# 408

SPEC

A

B

C

D

E

F

MOUNTING

SCREWS

ADJUSTING

SCREW

Notes



�.010

�.010

�.005

�.005

�.010

REF.

3971000-1 Web Store details

MSP 64438B-101

5X4ATI-R

4.975

3.975

4.810

3.810

.476

5.655

MS24693BB52

MS35214-50

Note 1

3971000-3 Web Store details

MSP 64438B-103,   5340-01-329-5679, NH1006343-10, 7000066-4

5X4ATI-R

4.975

3.975

4.810

3.810

.476

5.655

MS35214-44

MS35214-50

Note 1

3971020-1 Web Store details

MSP 64440B-101,    5340-01-424-8322

6X5ATI-R

5.975

4.975

5.810

4.810

.512

7.019

MS24693BB274

MS35215-63

Note 1

3971020-3 web store details

MSP 64440B-103,  5340-01-329-5676, NH1006345-10, NSA934901-14 , 7000066-6

6X5ATI-R

5.975

4.975

5.810

4.810

.512

7.019

MS35215-57

MS35215-63

Note 1

3972020-3 7000066-12 6X5ATI-R 5.975 4.975 5.810 4.810 .512 7.019 MS35215-57 MS35215-63

Note 3

3971015-1 Web Store details

MSP 64483B-101 4.975 x 4.600-R 4.975 4.600 4.810 4.435 .476 6.096 MS24693BB52 MS35214-50 Note 1

3971030-3 Web Store details

3.425 3.175 3.175 3.000 0.412 4.085 MS24693BB30 MS24693BB40

Note 1

3971015-3 Web Store details

MSP 64483B-103, NH1006344-10, 7000066-5

4.975 x 4.600-R

4.975

4.600

4.810

4.435

.476

6.096

MS35214-44

MS35214-50

Note 1

3971010-1 Web Store details

MSP 64489B-101

6X2ATI-R

5.975

2.175

5.810

2.012

.512

5.089

MS24693BB52

MS35214-50

Note 1

3971010-3 Web Store details

MSP 64489B-103, NH1006346-10, NSA934901-15, 7000066-7

6X2ATI-R

5.975

2.175

5.810

2.012

.512

5.089

MS35214-44

MS35214-50

Note 1

3971005-1 Web Store details

MSP 64557B-101

4 x 5 ATI-R

4.025

5.005

3.810

4.810

.476

5.697

MS24693B52

MS35214-50

Note 1

3971005-3 Web Store details

MSP 64557B-103,  7000066-11

4 x 5 ATI-R

4.025

5.005

3.810

4.810

.476

5.697

MS35214-44

MS35214-50

Note 1

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.
2: Anodized per MIL-A-8625, Type 1, Class 1, Clear.
3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.
4. Chem Film per MIL-DTL-5541, Class 3, Clear
Recommended mounting and adjusting screw torque is 8-12 in. lb.
All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.
Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.
Rivet materials are 2017 per QQ-A-225/5
5. The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross for all specifications, but
should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended cross referenced parts to ensure
suitability for their intended application.
