                ARINC 408A Square Avionics Clamps.





                                                                   Quick Links

           ARINC 408A 4ATI Clamp 1 Inch Deep                  ARINC 408A 5ATI 2 Inch Deep Clamp               ARINC 408A 3ATI Clamp 4 Inch Deep

         ARINC 408A  Clamps 1"  Deep                        ARINC 408A  Clamps 2" Deep                    ARINC 408A Clamps, 4" deep.

            2ATI clamps 1" deep                               2ATI clamps 2" deep                             3ATI clamps 4" deep

            3ATI clamps 1" deep                               3ATI clamps 2" deep                                      4ATI clamps 4" deep

            4ATI clamps 1" deep                                         4ATI clamps 2" deep

            5ATI clamps 1" deep                                         5ATI clamps 2" deep









ARINC Square Clamps 1" Deep.

2ATI 1" Deep Clamps





AMI Part number

Equivalent / Alternate Part numbers   *Foot Note 1

ARINC# 408 SPEC

A

B

C

T

MOUNTING SCREW

ADJUSTING SCREW

NOTES

2 PL.

.005

2 PL.

.003

  3511000 web store details

9962B,            5340-01-102-1998, 54620,  NH1002326-10, 34753

2ATI-S

2.175

2.080

2.500

0.045

MS35214-29

MS35214-46

Note 1

MSP 9962B equivalent. $30.61 each. We designed the 9962B clamp in the mid 70's. We sold that design in 2002. For a less expensive but stronger alternative, try our new design P/N 3511000. This is an ARINC 2ATI clamp, 1 inch deep, with an anodized finish.

3511001

NSA934901-04

2ATI-S

2.175

2.080

2.500

0.045

MS35214-31

MS35214-50

Note 2
The 3511001 clamp is exactly the same as the 3511000 with exception to the MIL-A-8625, Type 1, Class 1 (chromic) anodizing.



3512000 web store details

64665B

2ATI-S

2.175

2.080

2.500

0.045

MS35214-29

MS35214-46

Note 3

MSP 64665B Equivalent. $30.61 each. The 3512000 is exactly the same as the 3511000 with exception to the MIL-DTL-5541, Class 1A finish.

Notes:

1. Anodized per MIL-A-8625, Type 2, Class 1, Clear

2. Anodized per MIL-A-8625, Type 1, Class 1, Clear

3. Chem-filmed per MIL-DTL-5541, Class 1A, Yellow

4. Chem-filmed per MIL-DTL-5541, Class 3, Clear

5. Closing Brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 inch pounds.

All clamps are designed to meet ARINC 408 (A) specifications, and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8 or QQ-A-250/11.

Rivet material is 2017 per QQ-A-225/5



   3 ATI 1" Deep Clamps





AMI

Part number

Equivalent / Alternate Part numbers    *Foot Note 1

ARINC# 408

SPEC

A

B

C

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES



2 PL.

.005

2 PL.

.003

  3611000    web store details

9963B,              5340-01-053-7184, 5340-00-838-1478, NAS934901-03, 34753,           54621,        4000836-3,           5340-01-564-3747, NH1002543-10,    6499-057,             150-5600-002,       2513-708-98233, 18289

3 ATI -S

3.175

3.060

3.885

0.045

MS35214-29

MS35214-46

Note 1

MSP 9963B equivalent $30.61 each. We designed the 9963B clamp in the mid 60's. We sold that design in 2002. It also was one of the clamps in the first series of ARINC clamps we designed. In the mid 80's the "B" suffix was added to the part number to denote a different style of riveting. Our new design (P/N 3611000) is a one piece band and lug assembly that has superior strength, and electrical continuity properties to the 9963B. This is an ARINC 3 ATI clamp, 1 inch deep.

 3611000-LJ   web store details

9963LJ,          5340-01-525-8983

3ATI-S SPL.

3.175

3.060

3.885

0.045

MS35214-44

MS35214-46

Note 1

MSP 9963LJ equivalent $30.61 each. We designed the 9963-LJ clamp sometime in the mid 70's. We sold that design in 2002. It was designed for Gates Lear Jet. Hence the "LJ" suffix. The only difference between it and the 9963B was that the 9963LJ had 8-32 mounting screws. Our new design (P/N 3611000-LJ) is a one piece band and lug assembly that has superior strength, and electrical continuity properties to the 9963LJ.

3611005

NAS934901-03

3ATI-S

3.175

3.060

3.885

0.045

MS35214-29

MS35214-46

Note 2

The 3611005 is similar to the 3611000 with the exception of the Type 1 anodizing.

3611010



3ATI-S SPL.

3.175

3.060

3.885

0.045

MS35214-29

MS35214-31

Note 1

The 3611010 is similar to the 3611000 with the exception of 6-32 adjusting screws.

  3612000 web store details

64397B

3ATI-S

3.175

3.060

3.885

0.045

MS35214-29

MS35214-46

Note 3

MSP 64397B equivalent. $30.61 each. We designed the 64397B clamp sometime in the mid 80's. We sold that design in 2002.Our new design (3612000) clamp is exactly the same as the 3611000 clamp except it has a chem-film finish per MIL-DTL-5541, Class 1A.

Notes:

1. Anodized per MIL-A-8625, Type 2, Class 1, Clear

2. Anodized per MIL-A-8625, Type 1, Class 1, Clear

3. Chem-filmed per MIL-DTL-5541, Class 1A, Yellow

4. Chem-filmed per MIL-DTL-5541, Class 3, Clear

5. Closing Brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 inch pounds.

All clamps are designed to meet ARINC 408 (A) specifications, and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8 or QQ-A-250/11.

Rivet material is 2017 per QQ-A-225/5



4 ATI 1" Deep Clamps



AMI

Part number

Equivalent / Alternate Part numbers         *Foot Note 1

ARINC# 408

SPEC

A

B

C

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES



2 PL.

.005

2 PL.

.003

    3711000-1 web store details

9964B,          54622,                    139-3157-010,       5340-01-031-0722,      4000836-2,

4ATI-S

3.975

3.860

5.015

0.040

MS25214-29

MS35214-46

Note 1

MSP 9964B equivalent $43.15 each. We designed the 9964B clamp in the mid 60's. We sold that design in 2002. It also was another one of the clamps in the first series of ARINC clamps we designed. In the mid 80's the "B" suffix was added to the part number to denote a different style of riveting. This is an 4ATI clamp, 1 inch deep.

3711000-2

NAS934901-02

4ATI-S

3.975

3.860

5.015

0.040

MS25214-29

MS35214-46

Note 2

The 3711000-2 is similar to the 3711000-1 with the exception of the Type 1 anodizing.

 3711000-LJ web store details

9964LJ,                  5340-01-518-3412

4ATI-S SPL

3.975

3.860

5.015

0.040

MS35214-44

MS35214-46

Note 1

MSP 9964-LJ equivalent $43.15 each. We designed the 9964LJ clamp sometime in the mid 70's. We sold that design in 2002. It was designed for Gates Lear Jet. Hence the "LJ" suffix. The only difference between it and the 9963B was that the 9963LJ had 8-32 mounting screws.



Notes:

1. Anodized per MIL-A-8625, Type 2, Class 1, Clear

2. Anodized per MIL-A-8625, Type 1, Class 1, Clear

3. Chem-filmed per MIL-DTL-5541, Class 1A, Yellow

4. Chem-filmed per MIL-DTL-5541, Class 3, Clear

5. Closing Brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 inch pounds.

All clamps are designed to meet ARINC 408 (A) specifications, and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8 or QQ-A-250/11.

Rivet material is 2017 per QQ-A-225/5





5 ATI 1" Deep Clamps



AMI

Part number

Equivalent / Alternate Part numbers    *Foot Note 1

ARINC# 408

SPEC

A  +/-.010

   B    +/-.010

C  +/-.010

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES



2 PL.

.005

2 PL.

.003

3811000

9965B,               54623

5ATI-S

4.975

4.810

6.360

0.050

MS35214-44

MS35214-46

Note 1

The 3811000 is a 5ATI clamp that is one inch deep with an anodized finish.

3812000

64677B

5ATI-S

4.975

4.810

6.360

0.050

MS35214-44

MS35214-46

Note 3

The 3812000 is a 5ATI clamp that is one inch deep with a chem-filmed finish

Notes:

1. Anodized per MIL-A-8625, Type 2, Class 1, Clear

2. Anodized per MIL-A-8625, Type 1, Class 1, Clear

3. Chem-filmed per MIL-DTL-5541, Class 1A, Yellow

4. Chem-filmed per MIL-DTL-5541, Class 3, Clear

5. Closing Brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 inch pounds.

All clamps are designed to meet ARINC 408 (A) specifications, and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8 or QQ-A-250/11.

Rivet material is 2017 per QQ-A-225/5

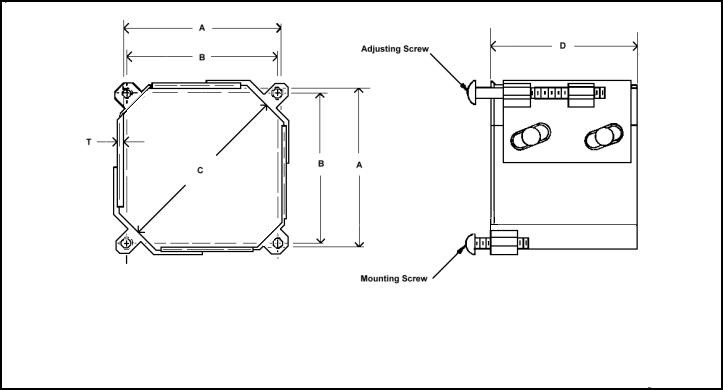

  ARINC Square Clamps 2" Deep.

2 ATI 2" Deep Clamps



AMI

P/N

Equivalent / Alternate Part numbers         *Foot Note 1

ATI SIZE

SPEC

A

B

C

D

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES

.010

.005

.015

.03

.003

3521000 web store details

64416B,              5340-01-328-1210,  340-01-247-3466, NSA934901-11, NH1004718-10,  MBG68508

2ATI-S

2.175

2.080

2.500

2.00

0.045

MS35214-29

MS35214-50

Note 1

64416B equivalent. $53.05 each. We designed the 64416B clamp in the mid 70's. We sold that design in 2002. For a less expensive but stronger alternative, try our new design P/N 3521000. This is an ARINC 2ATI clamp, 2 inches deep with a anodized finish.

3521005

NAS934901-13

2ATI-S

2.175

2.080

2.500

2.00

0.045

MS35214-29

MS35214-50

Note 2

The 3521005 is our Airbus version of the 2ATI 2 inch deep clamp. It is exactly the same as the 352100 with the exception of the Type 1 anodizing.

3521101 web store details

64465

2ATI-S

2.175

2.080

2.500

2.00

0.045

MS51957-32B

MS51957-53B

Notes 1 & 5

64465 equivalent. $53.05 each. We designed the 64465 clamp for British Aerospace in the early 80's. We sold that design in 2002.  The only difference between it and the 64416B part number was the locking closing brackets & screws. If you don't need those two items, go with our new design (P/N 3521000) for a less expensive, but stronger instrument clamp. If you do need those two items, try our new design P/N 3521101. This is an ARINC 2ATI clamp, 2 inches deep with a anodized finish, self-locking closing brackets, and stainless steel screws.

3522000 web store details

64617,               5340-01-482-8122

2 ATI -S

2.175

2.080

2.500

2.00

0.045

MS35214-29

MS35214-50

Note 3

64617B equivalent. $53.05 each. We designed the 64617B clamp in the early 90's. We sold that design in 2002. The 3522000 (64617B) is exactly the same as the 3521000 (64416B) except for the chem-film finish. This is a 2ATI Clamp that is 2 inches deep.

Notes:

1. Anodized per MIL-A-8625, Type 2, Class 1, Clear

2. Anodized per MIL-A-8625, Type 1, Class 1, Clear

3. Chem-filmed per MIL-DTL-5541, Class 1A, Yellow

4. Chem-filmed per MIL-DTL-5541, Class 3, Clear

5. Closing Brackets are self-locking

Recommended mounting and adjusting screw torque is 5-8 inch pounds.

All clamps are designed to meet ARINC 408 (A) specifications, and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8 or QQ-A-250/11.

Rivet material is 2017 per QQ-A-225/5



3 ATI 2" Deep Clamps

ARINC 408A Clamps 4 inch deep

3ATI 2 inch deep clamps

AMI

P/N

Equivalent / Alternate Part numbers    *Foot Note 1

ATI SIZE

SPEC

A

B

C

D

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES

.010

.005

.015

.03

.003

3621000 web store details

64311B,              5340-01-242-3434, 670548,     NSA934901-16, MGB61897, NH1000201-30,  NH100519-30, NH1004994-30, 41038-0001,       123-3,              S2545-1,                GC503BJ30

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35214-29

MS35214-50

Note 1

64311B equivalent $53.05 each. We designed the 64311B clamp in the mid 70's when customers asked for a stronger 3ATI clamp.  The first 64311 clamps had a 1" closing bracket which made the clamp awkward to install. We switched the closing bracket to a 2" deep bracket a few years later and the clamp became one of the most popular clamps that we sold. We sold that design in 2002. Our new design of this clamp (3621000) has a one piece band and lug assembly which makes this clamp superior to the 64311B This is an ARINC 3ATI clamp, 2 inches deep.

3621005 web store details

54-20007, NSA934901-16

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35214-31

MS35214-50

Note 1

The 3621005 is our Airbus equivalent of the 3621000. It is exactly the same as the 3621000 with the exception of the longer mounting screws.

3621010

139-0969-020

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS51957-32B

MS51957-53B

Note 4

3621101

88VT0100-1C

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35214-29

MS35214-50

Notes 1 & 5

3621101 $53.05 each. This is a new clamp design that is a 3ATI 2 inches deep with self locking closing brackets. This is the same as the 3621105 (64466 equivalent) except it has brass screws instead of stainless steel screws.

3621105 web store details

64466,           61062

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS51957-32B

MS51957-53B

Notes 1 & 5

64466 equivalent $53.55 each. We designed the 64466 clamp for British Aerospace in the early 80's. We sold that design in 2002. The only difference between it and the 64311B part number was the locking closing brackets & screws. If you don't need those two items, go with our new design (P/N 3621000) for a less expensive, but stronger instrument clamp. If you do need those two items, try our new design P/N 3621101. This is an ARINC 3ATI clamp, 2 inches deep.

3622005

64622B

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS24693BB52

MS35215-63

Note 3

64622B equivalent $53,05 each. Our 3622005 clamp has a one piece band and lug assembly which get rid of the nasty brazing process and give you better continuity and strength.

3622000 web store details

64640B,         5340-01-482-8124

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35214-29

MS35214-50

Note 3

64640B equivalent $53.05 each. We designed the 64640B clamp in the early 90's. We sold that design in 2002. The only difference between the 3622000 (64640B equivalent) and the 3621000 (64311B equivalent) part number is the Chem-film finish.

3622010

64650B

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35214-29

MS35214-50

Note 1

64650B equivalent $53,05 each. Our 3622010 clamp has a one piece band and lug assembly which get rid of the nasty brazing process and give you better continuity and strength.

3622100

88VT0100-1B

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35216-29

MS35216-50

Notes 3 & 5

3623100 web store details

88VT0100-1A

3ATI-S

3.175

3.060

3.885

2.00

0.045

MS35214-29

MS35214-50

Notes 4 & 5

Our 3623100 clamp is just like the 3622000 except that the Chem-film finish is per MIL-DTL-5541, Class 3, clear.

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear is no longer available. Parts weill be anodized per MIL-A-8625, Type 2, Class 1, Clear.

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 6-10 in. lb.

All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5





 4 ATI 2" Deep Clamps



AMI

P/N

Equivalent / Alternate Part numbers   *Foot Note 1

ATI SIZE

A

B

C

D

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES

SPEC

.010

.005

.015

.03

.003

3721000 web store details

64359B  NH1005519-40, NH1004994-40, 61186, 123-4,     331A-6P, 9D0011-40

4ATI-S

3.975

3.860

5.015

2.00

0.040

MS35214-29

MS35214-50

Note 1

64359B equivalent $55.70 each. We designed the 64359B clamp in the early 90's. We sold that design in 2002. The 3721000 clamp is a 4ATI clamp, 2 inches deep with an anodized finish.

3722000 web store details



4ATI-S

3.975

3.860

5.015

2.00

0.040

MS35214-29

MS35214-50

Note 3

The 3722000 clamp is a 4ATI clamp, 2 inches deep with an Class 1A Chem-film finish.

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear is no longer available. Parts weill be anodized per MIL-A-8625, Type 2, Class 1, Clear

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 6-10 in. lb.

All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5











5 ATI 2" Deep Clamps



AMI

P/N

Equivalent / Alternate Part numbers   *Foot Note 1

ATI SIZE

A

B

C

D

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES

SPEC

.010

.005

.015

.03

.003

3821000 web store details

64347B

5ATI-S

4.975

4.810

6.360

2.00

0.050

MS35214-44

MS35214-50

Note 1

64347B equivalent $55.13 each. We designed the 64347B clamp in the early 80's. We sold that design in 2002. The 3821000 is a 5ATI clamp that is 2 inches deep with an anodized finish.

3822000 web store details

64629B

5ATI-S

4.975

4.810

6.360

2.00

0.050

MS35214-44

MS35214-50

Note 3

64629B equivalent $55.13 each. We designed the 64629B clamp in the early 90's. We sold that design in 2002. The only difference between it and the 3821000 (64347B equivalent) part number is the Chem-film finish.

3823000 web store details

64624B

5ATI-S

4.975

4.810

6.360

2.00

0.040

MS35214-44

MS35214-50

Note 4

64624B equivalent. Built to order, call us for a quote.

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear is no longer available. Parts weill be anodized per MIL-A-8625, Type 2, Class 1, Clear

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 6-10 in. lb.

All clamps are designed to meet the requirements of MIL-C-6818 and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5







  ARINC Square Clamps 4" Deep.

 3 ATI 4" Deep Clamps





AMI

P/N

Equivalent / Alternate Part numbers   *Foot Note 1

ATI SIZE

SPEC

A

B

C

D

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES



.010

.005

.015

.03

.003

3641000-1 web store details

64435B-101

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS24693BB30

MS35214-50

Note 1

64435B-101 equivalent $63.00 each. We designed the 64435B-101 clamp in the mid 70's when customers asked for a 3ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3641000-1) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 6-32 flat head screws in the mounting positions.

3641000-3 web store details

64435B-103

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS35214-29

MS35214-50

Note 1

64435B-103 equivalent $63.00 each. We designed the 64435B-103 clamp in the mid 70's when customers asked for a 3ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3641000-3) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 6-32 pan head screws in the mounting positions.

3641000-5 web store details

64435B-105

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS35214-44

MS35214-50

Note 1

64435B-105 equivalent $63.00 each. We designed the 64435B-105 clamp in the mid 70's when customers asked for a 3ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3641000-5) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 8-32 pan head screws in the mounting positions.

3641000-7 web store details

64435B-107

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS35214-32

MS51957-55B

Note 1

64435B-107 equivalent $63.000 each. We designed the 64435B-107 clamp in the mid 80's to accommodate a 1/2 thick panel. We sold that design in 2002. We made some changes in our new equivalent clamp (3641000-7) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 6-32 pan head screws in the mounting positions long enough to accommodate a .500 thick panel.

3642000-1 web store details

64662B-101

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS24693BB30

MS35214-50

Note 3

64462B-101 equivalent $63.00 each. We designed the 64462B-101 clamp in the mid 80's when customers asked for a 3ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3642000-1) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 6-32 flat head screws in the mounting positions. This clamp has a Chem-Film finish.

3642000-3 web store details

64662B-103,  54-20007

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS35214-29

MS35214-50



Note 3

64462B-103 equivalent $63.00 each. We designed the 64462B-103 clamp in the mid 80's when customers asked for a 3ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3642000-3) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 6-32 pan head screws in the mounting positions. This clamp has a Chem-Film finish.

3642000-5 web store details

64662B-105

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS35214-44

MS35214-50

Note 3

64462B-105 equivalent $63.00 each. We designed the 64462B-105 clamp in the mid 80's when customers asked for a 3ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3642000-5) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 8-32 pan head screws in the mounting positions. This clamp has a Chem-Film finish.

3642000-7 web store details

64662B-107

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS51957-32B

MS51957-55B

Note 3

64662B-107 equivalent $63.00 each. We designed the 64662B-107 clamp in the mid 80's to accommodate 1/2 thick panels. We sold that design in 2002. We made some changes in our new equivalent clamp (3642000-7) that makes it less expensive to produce. This clamp has 8-32 pan head screws in the closing, and 6-32 pan head screws in the mounting positions long enough to accommodate a .500 thick panel.

3643000-3 web store details

3ATI-S

3.175

3.060

3.885

4.00

0.040

MS35214-29

MS35214-50

Note 4

The 3643000-3 is a 3ATI that is 4 inches deep with a class 3 Chem-film finish and 6-32 mounting & 8-32 adjusting screws.
3643000-8   139-0969-030   3ATI-S   3.175   3.060   3.885 4.00   0.040 MS24693BB32   MS51957-57B   Note 4
The 3643000-8 is a 3ATI that is 4 inches deep with a class 3 Chem-film finish and Stainless steel adjusting screws.
3643000-9 139-0969-040 3ATI-S   3.175   3.060 3.885 4.00   0.040 MS51957-32B-36118   MS51957-57B-36118

Note 4

The 3643000-9 is a 3ATI that is 4 inches deep with a class 3 Chem-film finish and Stainless steel adjusting screws that are painted with a 36118 color.

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear is no longer available. Parts will be anodized per MIL-A-8625, Type 2, Class 1, Clear.  .

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 6-10 in. lb.

All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5







 4 ATI 4" Deep Clamps





AMI

P/N

Equivalent / Alternate Part numbers   *Foot Note 1

ATI SIZE

SPEC

A

B

C

D

T

MOUNTING

SCREW

ADJUSTING

SCREW

NOTES



.010

.005

.015

.03

.003

3741000-1 web store details

64377B-101,     4730-01-505-1811

4ATI-S 3.975 3.860 5.015 4.00 0.040 MS24693BB274 MS35215-63

Note 1

64377B-101 equivalent $80.00 each. We designed the 64377B-101 clamp in the mid 80's when customers asked for a 4ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3742000-1) that makes it less expensive to produce. This clamp has 10-32 pan head screws in the closing, and 10-32 flat head screws in the mounting positions. This clamp has an anodized finish.

3741000-3 web store details

64377B-103

4ATI-S

3.975

3.860

5.015

4.00

0.040

MS35215-57

MS35215-63

Note 1

64377B-103 equivalent $80.00 each. We designed the 64377B-103 clamp in the mid 80's when customers asked for a 4ATI clamp with more support.  We sold that design in 2002. We made some changes in our new equivalent clamp (3742000-3) that makes it less expensive to produce. This clamp has 10-32 pan head screws in the closing, and 10-32 pan head screws in the mounting positions. This clamp has an anodized finish.

Notes:

1: Anodized per MIL-A-8625, Type 2, Class 1, Clear.

2: Anodized per MIL-A-8625, Type 1, Class 1, Clear is no longer available. Parts weill be anodized per MIL-A-8625, Type 2, Class 1, Clear

3: Chem-filmed per MIL-DTL-5541, Class 1A, Yellow.

4. Chem Film per MIL-DTL-5541, Class 3, Clear

5 Closing brackets are self-locking

Recommended mounting and adjusting screw torque is 6-10 in. lb.

All clamps are designed to meet the requirements of ARINC 408 (A) and/or customer requirements.

Band and closing bracket materials are 6061-T6 per QQ-A-200/8,  or AQMS-QQ-A-250/11.

Rivet materials are 2017 per QQ-A-225/5


Avionics Mounts Inc | ARINC 408A Square Instrument Mounts

 * Foot Note 1: The data in this column is intended to provide a potential cross reference to a competitive product. There is no guarantee that this is a perfect cross for all specifications, but should be used to direct the requestor to a similar product. It is suggested that the end-user customer qualify the recommended cross referenced parts to ensure suitability for their intended application.













Copyright 2009 - Avionics Mounts Inc.


Site Map - Home - Products - Search - Checkout
